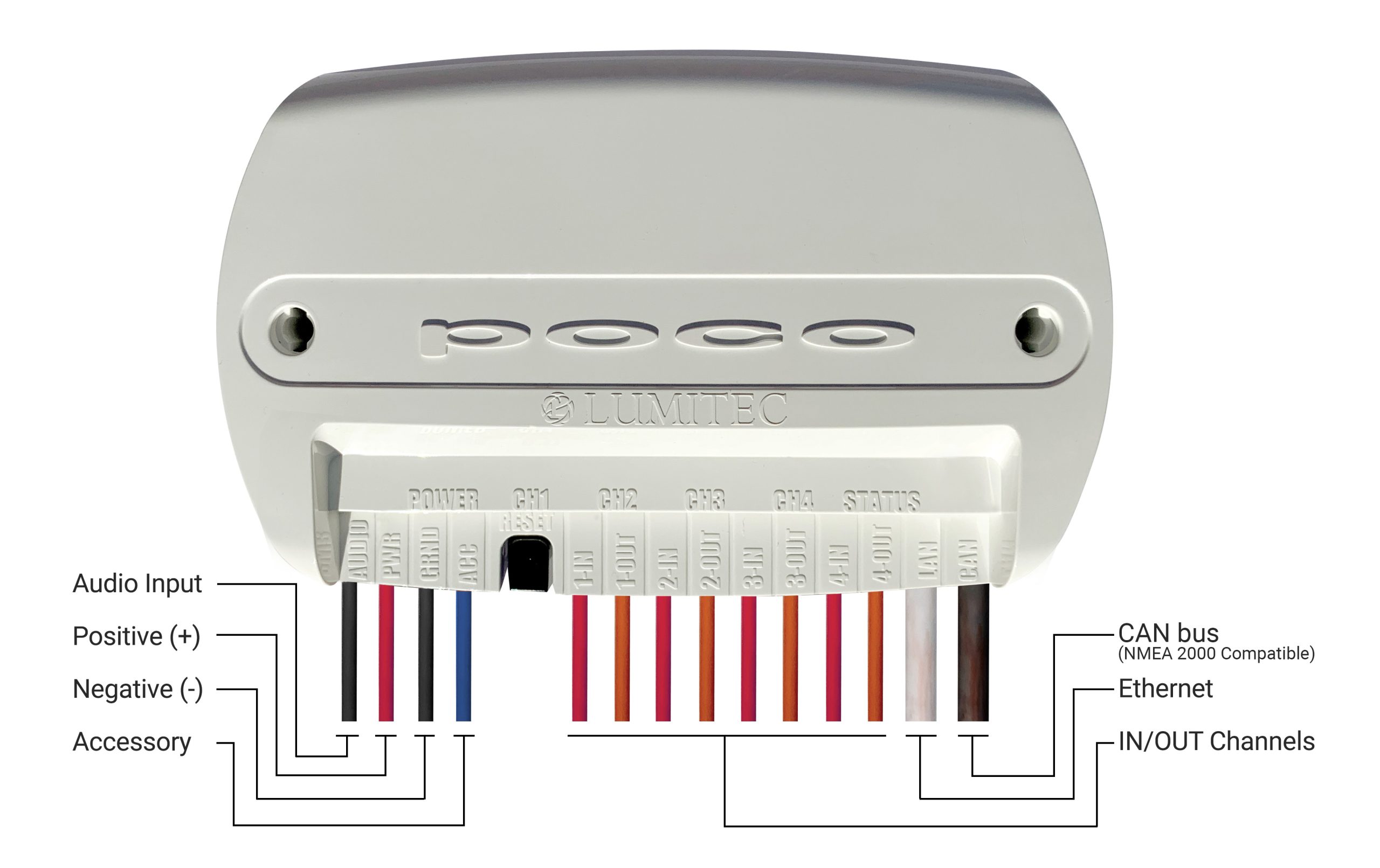

Specifications:
- Will work with 12vDC or 24vDC system.
- 4 output channels (10 amp per/ch). 40 Amp total load across all channels.
- Output channels require power IN (unless adding a 3-wire light).
- Audio Input 3.5 mm (black).
- Accessory Wire (blue).
- LAN Connection to MFD (thick white).
- NMEA/CAN bus Connection (thick black).
Note: You can spread the total amp load across all channels with multiple product families sharing the same physical circuits, yet receiving separate commands. This is known as a “Virtual Circuit”, covered in the next section.
